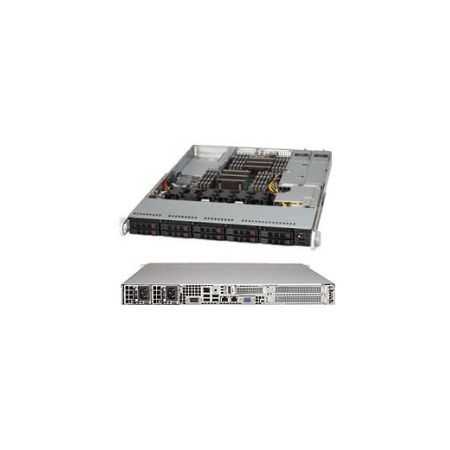

Supermicro SuperServer 1027R-N3RF Barebone System - 1U Rack-mountable - Intel C606 Chipset - Socket R LGA-2011 - 2 x Processor Support - Black Item # 247978
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
247978
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed for optimal performance, the SuperServers come in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Product Details
| Item # | 247978 |
| Manufacturer # | 10549055 |
| Number of SATA Interfaces | 2 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 1+0, 5 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 700 W |
| height | 1.7 in |
| Certifications & Standards | ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| Total Number of USB Ports | 6 |
| Graphics Controller Manufacturer | Matrox |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 1027R-N3RF; 1 x Super X9DRW-3F Motherboard; 1 x 1U Chassis; 1 x BPN-SAS-116TQ Backplane; 1 x 23CM, W / 25.5cm SB, S, 30AWG Ipass to 4 SATA Cable; 1 x 8pin to 8pin Cable for SGPIO, 61.5cm, PBF; 2 x 65CM SATA ROUND S-RA PBF; 1 x 43/43/33/33CM, W/ 43cm SB, RA ,30AWG; 1 x Driver CD for X9 Series; 1 x RSC-R1UW-2E16-O-P Riser Card; 2 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM; 2 x 1U REDUNDANT PWS PMBUS GOLD EFFICIENCY 54.5MM |
| depth | 23.5 in |
| Product Name | SuperServer 1027R-N3RF |
| QuickPath Interconnect Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| VGA | Yes |
| weight | 46 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 512 GB |
| Number of Total Memory Slots | 16 |
| controller type | Serial ATA/600; Serial Attached SCSI (SAS) |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 6 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Internal 2.5" Bays | 10 |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 2 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C606 |
| Number of Total Expansion Bays | 10 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200 |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | PC3-6400 - 512 GB - registered - ECC ¦ PC3-8500 - 512 GB - registered - ECC ¦ PC3-10600 - 512 GB - registered - ECC ¦ PC3-12800 - 512 GB - registered - ECC ¦ PC3-6400 - 128 GB - unbuffered - ECC ¦ PC3-8500 - 128 GB - unbuffered - ECC ¦ PC3-10600 - 128 GB - unbuffered - ECC ¦ PC3-12800 - 128 GB - unbuffered - ECC |
| color | black |
| Number of SAS Interfaces | 8 |
| warranty length | 3-year limited |
| model name | 1027R-N3RF |
| QuickPath Interconnect | 8 GT/s |
| Show More ▾ |
